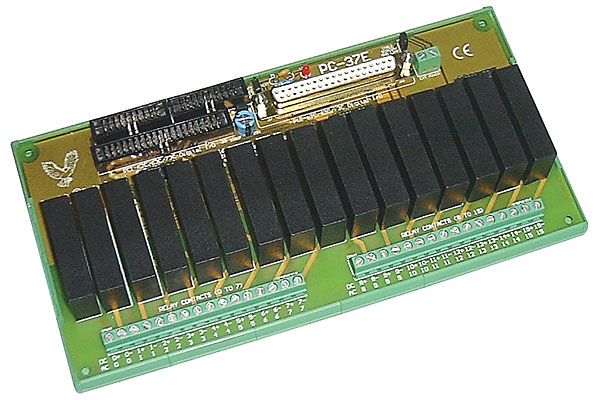

16 Channel Opto-22 Solid State Relay Module

Product Datasheet
  • 16 (AC or DC) OPTO-22 Solid State Relay Channels (Connected to Digital I/O O/P’s of the Host DAQ PC Card).
  • For use with PCI-62C/63C/73C Digital I/O (DB-37F) or (IDC-40M), using 1:1 cables.
  • Two IDC-20M connectors for accessing the 16 Digital I/P’s and 16 Digital O/P’s for use with other DAQ PC Cards or with the PC-43A1/2/3
  • DB-37F Connector Cable Screen / DGND” linking jumper.
  • High quality screw terminals for easy field wiring.
  • Internal / External (+5V) power input is jumper selectable (300mA resettable fuse for PSU protection and LED for indication “Power Present”).
  • There are four 3.2mm diameter holes for mounting or a DIN-RAIL Mounting Base may be fitted (recommended for quick hassle free installations).
  • Dimensions: 107.5(W) x 214.5(L) x 28(H) mm
  • Ordering Information

    Item Description Price Qty
    PC-37E 16 Channel Opto-22 Solid State Relay Module Contact For Price
